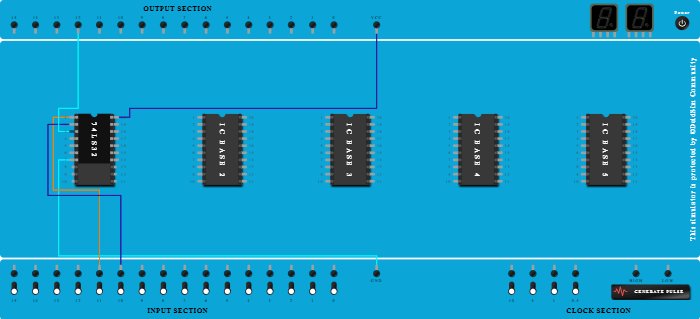

Procedure

  1. Add IC 74LS32 into ICBase-1 (74LS32).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS32).
  3. Connect Pin-7 (Ground) of ICBase-1 (74LS32) to GND Port.
  4. Connect Input-11 to Pin-1 (Input) of ICBase-1 (74LS32).
  5. Connect Input-10 to Pin-2 (Input) of ICBase-1 (74LS32).
  6. Connect Output-12 to Pin-3 (Output) of ICBase-1 (74LS32).
