New Circuit

manchimsetty naga satya vinay

• Created on Aug 7, 2026 • 0 • 0 • 1

Edit Circuit Copy Circuit Try Yourself

New Circuit

100%

Integrated Circuits Used

Procedure

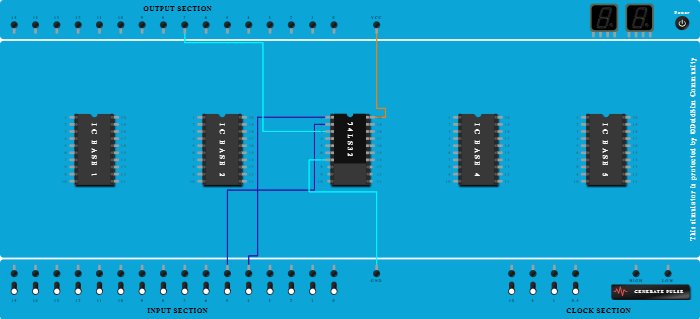

Connect Input-5 to Pin-2 (Input) of ICBase-3 (74LS32).
Add IC 74LS32 into ICBase-3 (74LS32).
Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS32).
Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS32).
Connect Pin-1 (Input) of ICBase-3 (74LS32) to Input-4.
Connect Pin-3 (Output) of ICBase-3 (74LS32) to Output-7.
