New Circuit
100%

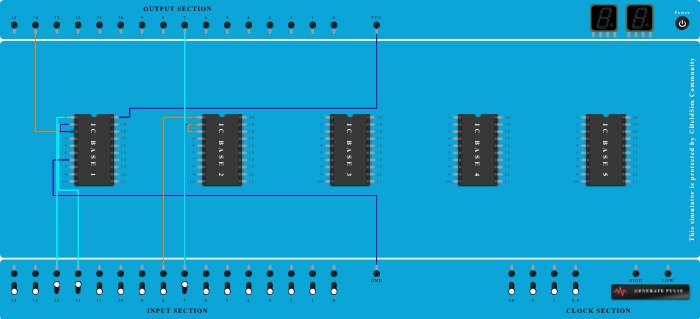

Procedure

  1. Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
  2. Connect Input-12 to Pin-2 (Input & Output) of ICBase-1.
  3. Connect Pin-3 (Input & Output) of ICBase-1 to Output-14.
  4. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  5. Connect Input-13 to Pin-1 (Input & Output) of ICBase-1.
  6. Connect Input-8 to Pin-1 (Input & Output) of ICBase-2.
  7. Connect Input-7 to Pin-2 (Input & Output) of ICBase-2.
  8. Connect Input-7 to Output-7.
  9. Connect Pin-2 (Input & Output) of ICBase-2 to Pin-3 (Input & Output) of ICBase-2.
  10. Connect Pin-2 (Input & Output) of ICBase-1 to Pin-3 (Input & Output) of ICBase-1.
