Integrated Circuits Used

74LS04 74LS08 74LS32

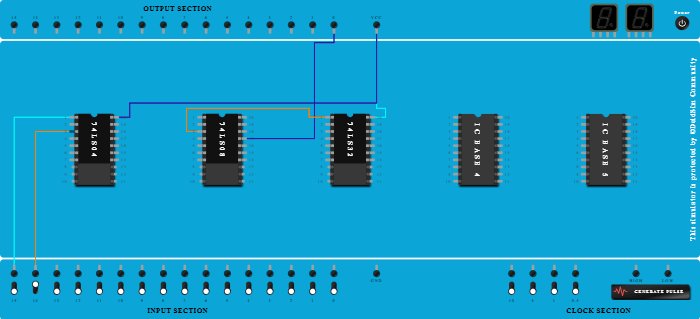

Procedure

  1. Add IC 74LS04 into ICBase-1 (74LS04).
  2. Add IC 74LS08 into ICBase-2 (74LS08).
  3. Add IC 74LS32 into ICBase-3 (74LS32).
  4. Connect Pin-17 (Output) of ICBase-2 (74LS08) to Output-0.
  5. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS32).
  6. Connect Pin-3 (Output) of ICBase-2 (74LS08) to Pin-1 (Input) of ICBase-3 (74LS32).
  7. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS04).
  8. Connect Input-15 to Pin-1 (Input) of ICBase-1 (74LS04).
  9. Connect Input-14 to Pin-3 (Input) of ICBase-1 (74LS04).
