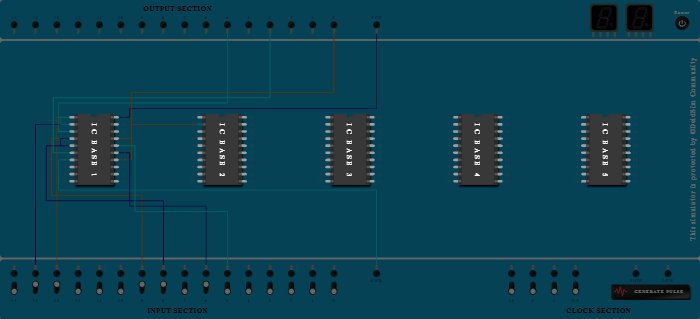

Procedure

  1. Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
  2. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  3. Connect Input-13 to Pin-1 (Input & Output) of ICBase-1.
  4. Connect Input-14 to Pin-2 (Input & Output) of ICBase-1.
  5. Connect Output-5 to Pin-3 (Input & Output) of ICBase-1.
  6. Connect Input-9 to Pin-4 (Input & Output) of ICBase-1.
  7. Connect Input-8 to Pin-5 (Input & Output) of ICBase-1.
  8. Connect Output-3 to Pin-6 (Input & Output) of ICBase-1.
  9. Connect Output-0 to Pin-14 (Input & Output) of ICBase-1.
  10. Connect Input-6 to Pin-15 (Input & Output) of ICBase-1.
  11. Connect Input-5 to Pin-16 (Input & Output) of ICBase-1.
  12. Connect Output-0 to Pin-17 (Input & Output) of ICBase-1.
  13. Connect Pin-4 (Input & Output) of ICBase-1 to Pin-5 (Input & Output) of ICBase-1.
  14. Connect Pin-1 (Input & Output) of ICBase-1 to Pin-2 (Input & Output) of ICBase-1.
  15. Connect Pin-17 (Input & Output) of ICBase-1 to Pin-2 (Input & Output) of ICBase-2.
