New Circuit

rohithreddy
rohithreddy
• Created on Aug 7, 2026 • 0 • 0 • 0
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Procedure

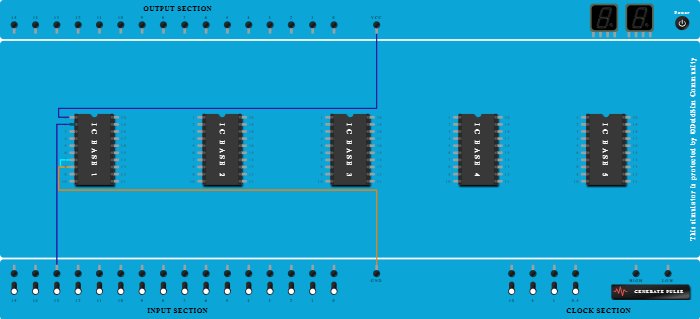

  1. Connect VCC Port to Pin-1 (Input & Output) of ICBase-1.
  2. Connect Pin-8 (Input & Output) of ICBase-1 to Pin-7 (Input & Output) of ICBase-1.
  3. Connect GND Port to Pin-8 (Input & Output) of ICBase-1.
  4. Connect Input-13 to Pin-2 (Input & Output) of ICBase-1.
