Untitled circuit
100%

Integrated Circuits Used

74LS00

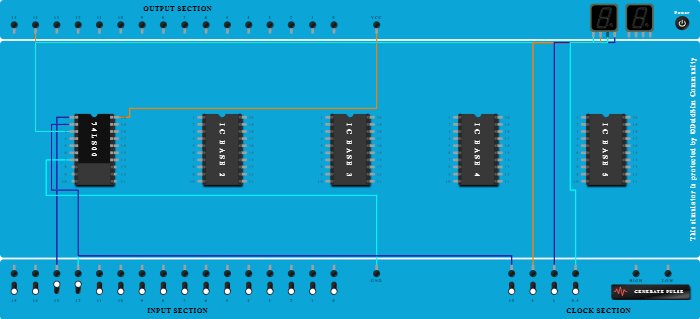

Procedure

  1. Connect Input-13 to Pin-1 (Input) of ICBase-1 (74LS00).
  2. Connect Input-12 to Pin-2 (Input) of ICBase-1 (74LS00).
  3. Connect Output-14 to Pin-3 (Output) of ICBase-1 (74LS00).
  4. Add IC 74LS00 into ICBase-1 (74LS00).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS00).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS00).
  7. Connect Pin-2 (Input) of ICBase-1 (74LS00) to Clock port of 10Hz frequency.
  8. Connect Pin-3 (Output) of ICBase-1 (74LS00) to Seven segment display 2.
  9. Connect Pin-3 (Output) of ICBase-1 (74LS00) to Seven segment display 2.
  10. Connect Pin-3 (Output) of ICBase-1 (74LS00) to Seven segment display 2.
  11. Connect Pin-3 (Output) of ICBase-1 (74LS00) to Seven segment display 2.
  12. Connect Clock port of 5Hz frequency to Seven segment display 2.
  13. Connect Clock port of 1Hz frequency to Seven segment display 2.
  14. Connect Clock port of 0.5Hz frequency to Seven segment display 2.
