New Circuit

Yadnesh Sakhare
Yadnesh Sakhare
• Created on Aug 5, 2026 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Integrated Circuits Used

74LS00 74LS08

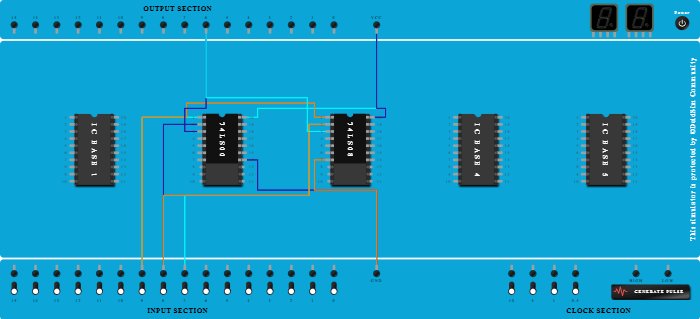

Procedure

  1. Add IC 74LS00 into ICBase-2 (74LS00).
  2. Add IC 74LS08 into ICBase-3 (74LS08).
  3. Connect GND Port to Pin-14 (Output) of ICBase-2 (74LS00).
  4. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS00).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS08).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS08).
  7. Connect Input-9 to Pin-1 (Input) of ICBase-2 (74LS00).
  8. Connect Input-9 to Pin-1 (Input) of ICBase-3 (74LS08).
  9. Connect Input-8 to Pin-2 (Input) of ICBase-2 (74LS00).
  10. Connect Input-7 to Pin-2 (Input) of ICBase-3 (74LS08).
  11. Connect Input-8 to Pin-2 (Input) of ICBase-3 (74LS08).
  12. Connect Output-6 to Pin-3 (Output) of ICBase-2 (74LS00).
  13. Connect Output-6 to Pin-3 (Output) of ICBase-3 (74LS08).
