New Circuit

Chand Singh
Chand Singh
• Created on Aug 5, 2026 • 0 • 0 • 2
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Integrated Circuits Used

74LS00 74LS08

Procedure

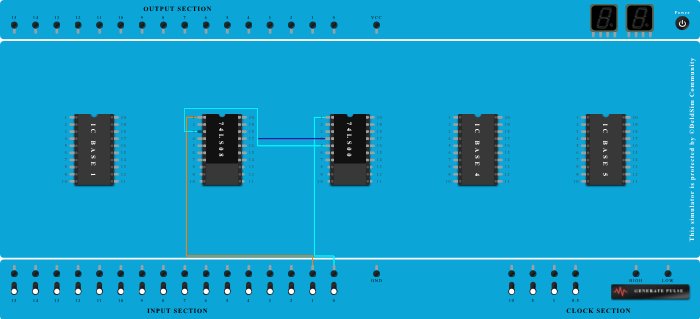

  1. Add IC 74LS00 into ICBase-3 (74LS00).
  2. Add IC 74LS08 into ICBase-2 (74LS08).
  3. Connect Pin-1 (Input) of ICBase-3 (74LS00) to Input-0.
  4. Connect Pin-1 (Input) of ICBase-2 (74LS08) to Input-1.
  5. Connect Pin-4 (Input) of ICBase-3 (74LS00) to Pin-3 (Output) of ICBase-2 (74LS08).
  6. Connect Pin-5 (Input) of ICBase-3 (74LS00) to Pin-3 (Output) of ICBase-2 (74LS08).
