New Circuit

jastwanth m gowda
jastwanth m gowda
• Created on Aug 4, 2026 • 0 • 0 • 0
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

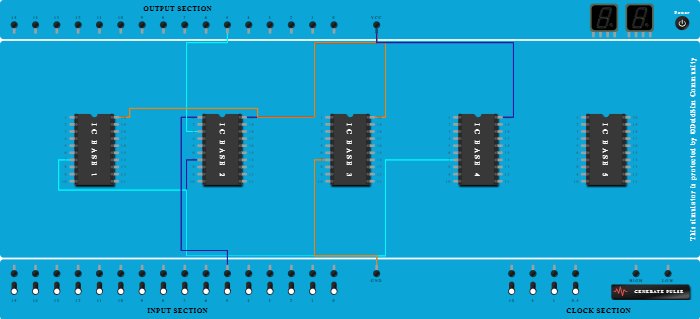

Procedure

  1. Connect Pin-20 (Input & Output) of ICBase-3 to VCC Port.
  2. Connect Pin-20 (Input & Output) of ICBase-2 to VCC Port.
  3. Connect Pin-7 (Input & Output) of ICBase-4 to GND Port.
  4. Connect Pin-7 (Input & Output) of ICBase-2 to GND Port.
  5. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  6. Connect GND Port to Pin-7 (Input & Output) of ICBase-3.
  7. Connect Pin-1 (Input & Output) of ICBase-2 to Input-5.
  8. Connect Pin-3 (Input & Output) of ICBase-2 to Output-5.
  9. Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
  10. Connect Pin-20 (Input & Output) of ICBase-4 to VCC Port.
