Untitled circuit

Vedanth P Remesh
Vedanth P Remesh
• Created on Aug 4, 2026 • 0 • 0 • 3
Edit Circuit Copy Circuit Try Yourself
Untitled circuit
100%

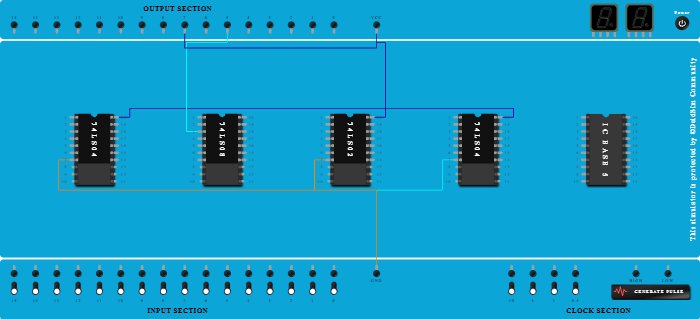

Integrated Circuits Used

74LS08 74LS04 74LS02

Procedure

  1. Add IC 74LS08 into ICBase-2 (74LS08).
  2. Add IC 74LS04 into ICBase-1 (74LS04).
  3. Add IC 74LS02 into ICBase-3 (74LS02).
  4. Add IC 74LS04 into ICBase-4 (74LS04).
  5. Connect Pin-20 (VCC) of ICBase-4 (74LS04) to Pin-20 (VCC) of ICBase-1 (74LS04).
  6. Connect Pin-3 (Output) of ICBase-2 (74LS08) to Output-5.
  7. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS04).
  8. Connect Pin-20 (VCC) of ICBase-3 (74LS02) to VCC Port.
  9. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS04).
  10. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS02).
  11. Connect Output-7 to VCC Port.
