New Circuit

100%

Integrated Circuits Used

Procedure

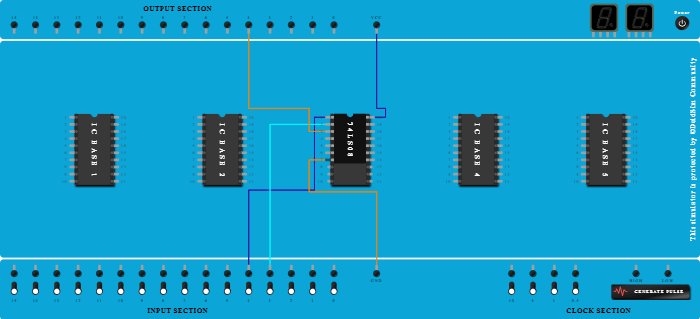

Connect Input-4 to Pin-1 (Input) of ICBase-3 (74LS08).
Connect Input-3 to Pin-2 (Input) of ICBase-3 (74LS08).
Connect Output-4 to Pin-3 (Output) of ICBase-3 (74LS08).
Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS08).
Add IC 74LS08 into ICBase-3 (74LS08).
Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS08).
