Untitled circuit

Sahil
Sahil
• Created on Aug 5, 2026 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
Untitled circuit
100%

Integrated Circuits Used

74LS32

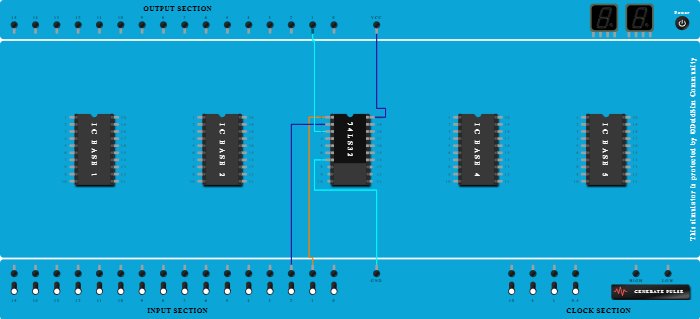

Procedure

  1. Add IC 74LS32 into ICBase-3 (74LS32).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS32).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS32).
  4. Connect Pin-1 (Input) of ICBase-3 (74LS32) to Input-1.
  5. Connect Pin-2 (Input) of ICBase-3 (74LS32) to Input-2.
  6. Connect Pin-3 (Output) of ICBase-3 (74LS32) to Output-1.
