New Circuit
100%

Integrated Circuits Used

74LS08

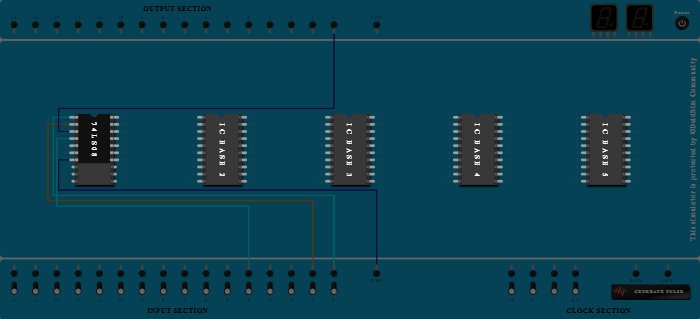

Procedure

  1. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS08).
  2. Add IC 74LS08 into ICBase-1 (74LS08).
  3. Connect Input-0 to Pin-1 (Input) of ICBase-1 (74LS08).
  4. Connect Input-1 to Pin-2 (Input) of ICBase-1 (74LS08).
  5. Connect Output-0 to Pin-3 (Output) of ICBase-1 (74LS08).
  6. Connect Input-4 to Pin-4 (Input) of ICBase-1 (74LS08).
