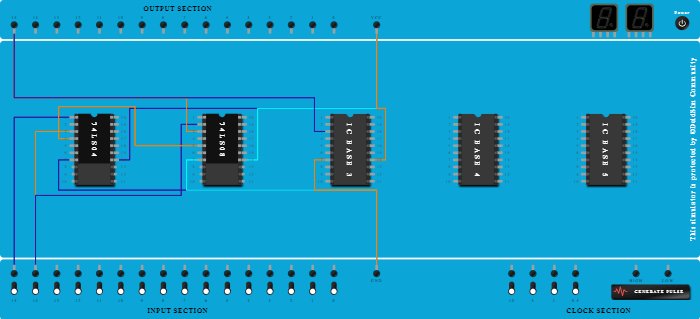

Half adder
100%

Integrated Circuits Used

74LS04 74LS08

Procedure

  1. Connect VCC Port to Pin-14 (Output) of ICBase-1 (74LS04).
  2. Connect VCC Port to Pin-14 (Output) of ICBase-2 (74LS08).
  3. Connect VCC Port to Pin-14 (Input & Output) of ICBase-3.
  4. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS04).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS08).
  6. Connect GND Port to Pin-7 (Input & Output) of ICBase-3.
  7. Connect Pin-1 (Input) of ICBase-1 (74LS04) to Input-15.
  8. Connect Input-14 to Pin-3 (Input) of ICBase-1 (74LS04).
  9. Add IC 74LS04 into ICBase-1 (74LS04).
  10. Add IC 74LS08 into ICBase-2 (74LS08).
  11. Connect Input-14 to Pin-2 (Input) of ICBase-2 (74LS08).
  12. Connect Output-15 to Pin-3 (Output) of ICBase-2 (74LS08).
  13. Connect Output-15 to Pin-3 (Input & Output) of ICBase-3.
  14. Connect Pin-5 (Input) of ICBase-2 (74LS08) to Pin-4 (Output) of ICBase-1 (74LS04).
