Integrated Circuits Used

74LS32

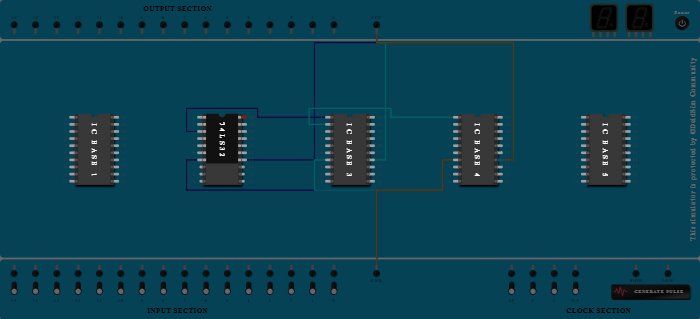

Procedure

  1. Add IC 74LS32 into ICBase-2 (74LS32).
  2. Connect Pin-14 (Output) of ICBase-2 (74LS32) to VCC Port.
  3. Connect Pin-14 (Input & Output) of ICBase-3 to VCC Port.
  4. Connect Pin-14 (Input & Output) of ICBase-4 to VCC Port.
  5. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS32).
  6. Connect GND Port to Pin-7 (Input & Output) of ICBase-3.
  7. Connect GND Port to Pin-7 (Input & Output) of ICBase-4.
  8. Connect Pin-1 (Input & Output) of ICBase-3 to Pin-3 (Output) of ICBase-2 (74LS32).
  9. Connect Pin-1 (Input & Output) of ICBase-4 to Pin-2 (Input & Output) of ICBase-3.
