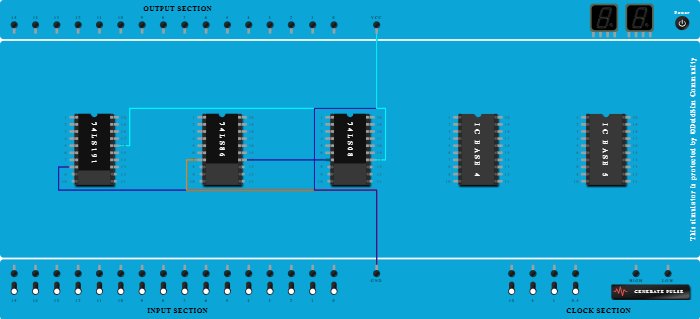

Integrated Circuits Used

74LS191 74LS86 74LS08

Procedure

  1. Add IC 74LS191 into ICBase-1 (74LS191).
  2. Add IC 74LS86 into ICBase-2 (74LS86).
  3. Add IC 74LS08 into ICBase-3 (74LS08).
  4. Connect GND Port to Pin-8 (Ground) of ICBase-1 (74LS191).
  5. Connect VCC Port to Pin-16 (Output) of ICBase-1 (74LS191).
  6. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS86).
  7. Connect Pin-14 (Output) of ICBase-2 (74LS86) to VCC Port.
  8. Connect VCC Port to Pin-14 (Output) of ICBase-3 (74LS08).
  9. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS08).
