Untitled circuit

ISHAN DEO
ISHAN DEO
• Created on Apr 20, 2026 • 0 • 0 • 3
Edit Circuit Copy Circuit Try Yourself
Untitled circuit
100%

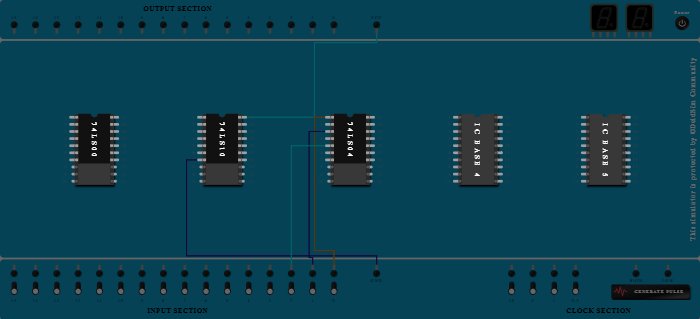

Integrated Circuits Used

74LS00 74LS10 74LS04

Procedure

  1. Add IC 74LS00 into ICBase-1 (74LS00).
  2. Add IC 74LS10 into ICBase-2 (74LS10).
  3. Add IC 74LS04 into ICBase-3 (74LS04).
  4. Connect Pin-7 (Ground) of ICBase-2 (74LS10) to GND Port.
  5. Connect Pin-20 (VCC) of ICBase-2 (74LS10) to VCC Port.
  6. Connect Pin-1 (Input) of ICBase-3 (74LS04) to Input-0.
  7. Connect Pin-3 (Input) of ICBase-3 (74LS04) to Input-1.
  8. Connect Pin-5 (Input) of ICBase-3 (74LS04) to Input-2.
