Description

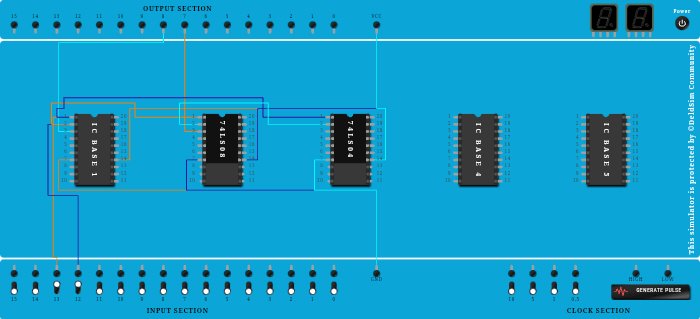

Half substractor

Procedure

  1. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  2. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS08).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS04).
  4. Connect VCC Port to Pin-14 (Input & Output) of ICBase-1.
  5. Connect VCC Port to Pin-14 (Output) of ICBase-2 (74LS08).
  6. Connect VCC Port to Pin-14 (Output) of ICBase-3 (74LS04).
  7. Connect Pin-1 (Input & Output) of ICBase-1 to Input-13.
  8. Connect Input-12 to Pin-2 (Input & Output) of ICBase-1.
  9. Connect Pin-3 (Input & Output) of ICBase-1 to Output-8.
  10. Connect Pin-1 (Input) of ICBase-2 (74LS08) to Pin-2 (Input & Output) of ICBase-1.
  11. Connect Output-7 to Pin-3 (Output) of ICBase-2 (74LS08).
  12. Connect Pin-1 (Input) of ICBase-3 (74LS04) to Pin-1 (Input & Output) of ICBase-1.
  13. Connect Pin-2 (Output) of ICBase-3 (74LS04) to Pin-2 (Input) of ICBase-2 (74LS08).
  14. Add IC 74LS08 into ICBase-2 (74LS08).
  15. Add IC 74LS04 into ICBase-3 (74LS04).
