Integrated Circuits Used

74LS02

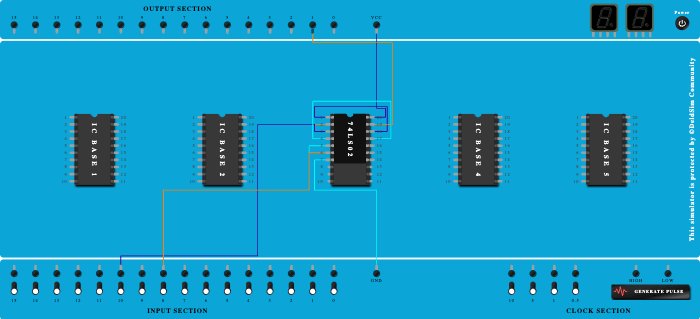

Procedure

  1. Add IC 74LS02 into ICBase-3 (74LS02).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS02).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS02).
  4. Connect Pin-2 (Input) of ICBase-3 (74LS02) to Input-10.
  5. Connect Input-10 to Pin-3 (Input) of ICBase-3 (74LS02).
  6. Connect Input-8 to Pin-5 (Input) of ICBase-3 (74LS02).
  7. Connect Input-8 to Pin-6 (Input) of ICBase-3 (74LS02).
  8. Connect Pin-1 (Output) of ICBase-3 (74LS02) to Pin-18 (Input) of ICBase-3 (74LS02).
  9. Connect Pin-17 (Input) of ICBase-3 (74LS02) to Pin-4 (Output) of ICBase-3 (74LS02).
  10. Connect Pin-19 (Output) of ICBase-3 (74LS02) to Output-1.
