Integrated Circuits Used

74LS00

Procedure

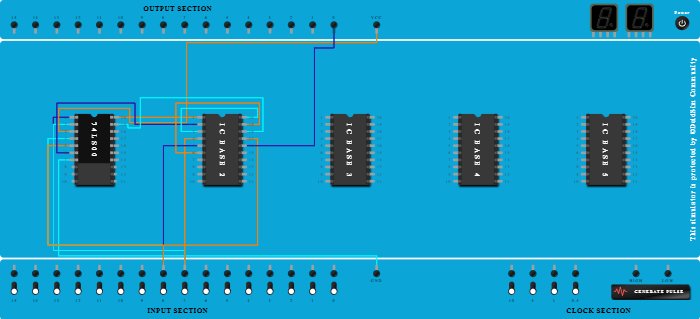

  1. Add IC 74LS00 into ICBase-1 (74LS00).
  2. Connect Pin-7 (Ground) of ICBase-1 (74LS00) to GND Port.
  3. Connect Pin-20 (VCC) of ICBase-1 (74LS00) to VCC Port.
  4. Connect Pin-1 (Input) of ICBase-1 (74LS00) to Input-7.
  5. Connect Pin-2 (Input) of ICBase-1 (74LS00) to Input-7.
  6. Connect Pin-1 (Input & Output) of ICBase-2 to Pin-3 (Output) of ICBase-1 (74LS00).
  7. Connect Pin-4 (Input) of ICBase-1 (74LS00) to Input-8.
  8. Connect Pin-5 (Input) of ICBase-1 (74LS00) to Input-8.
  9. Connect Pin-2 (Input & Output) of ICBase-2 to Pin-6 (Output) of ICBase-1 (74LS00).
  10. Connect Pin-4 (Input & Output) of ICBase-2 to Input-7.
  11. Connect Pin-5 (Input & Output) of ICBase-2 to Input-8.
  12. Connect Pin-20 (Input & Output) of ICBase-2 to Pin-3 (Input & Output) of ICBase-2.
  13. Connect Pin-19 (Input & Output) of ICBase-2 to Pin-6 (Input & Output) of ICBase-2.
  14. Connect Pin-18 (Input & Output) of ICBase-2 to Pin-19 (Input) of ICBase-1 (74LS00).
  15. Connect Pin-17 (Input & Output) of ICBase-2 to Input-8.
  16. Connect Pin-16 (Input & Output) of ICBase-2 to Output-0.
