nor using nand

polepalli kedarnath
polepalli kedarnath
• Created on Apr 9, 2026 • 0 • 0 • 0
Edit Circuit Copy Circuit Try Yourself

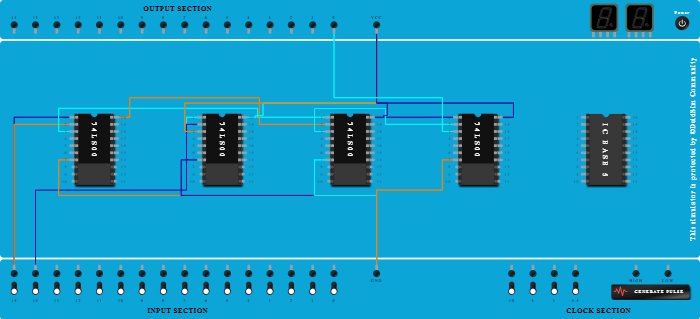

nor using nand
100%

Procedure

  1. Add IC 74LS00 into ICBase-1 (74LS00).
  2. Add IC 74LS00 into ICBase-4 (74LS00).
  3. Connect Input-15 to Pin-1 (Input) of ICBase-1 (74LS00).
  4. Connect Input-14 to Pin-1 (Input) of ICBase-2 (74LS00).
  5. Connect Pin-2 (Input) of ICBase-1 (74LS00) to Input-15.
  6. Connect Pin-2 (Input) of ICBase-2 (74LS00) to Input-14.
  7. Connect Pin-1 (Input) of ICBase-3 (74LS00) to Pin-3 (Output) of ICBase-1 (74LS00).
  8. Connect Pin-2 (Input) of ICBase-3 (74LS00) to Pin-3 (Output) of ICBase-2 (74LS00).
  9. Connect Pin-1 (Input) of ICBase-4 (74LS00) to Pin-3 (Output) of ICBase-3 (74LS00).
  10. Connect Pin-2 (Input) of ICBase-4 (74LS00) to Pin-3 (Output) of ICBase-3 (74LS00).
  11. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS00).
  12. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS00).
  13. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS00).
  14. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS00).
  15. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS00).
  16. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS00).
  17. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS00).
  18. Add IC 74LS00 into ICBase-3 (74LS00).
  19. Add IC 74LS00 into ICBase-2 (74LS00).
  20. Connect Pin-20 (VCC) of ICBase-4 (74LS00) to VCC Port.
  21. Connect Output-0 to Pin-3 (Output) of ICBase-4 (74LS00).
