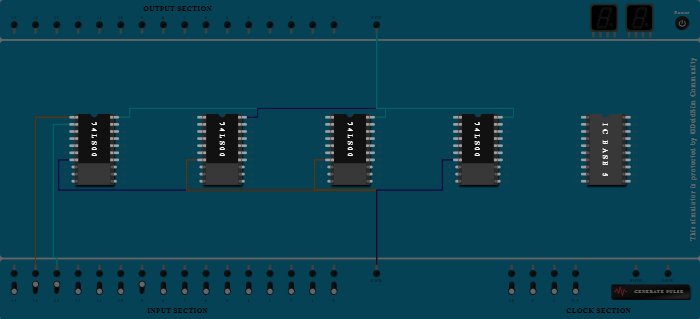

Integrated Circuits Used

74LS00

Procedure

  1. Add IC 74LS00 into ICBase-1 (74LS00).
  2. Add IC 74LS00 into ICBase-2 (74LS00).
  3. Add IC 74LS00 into ICBase-3 (74LS00).
  4. Add IC 74LS00 into ICBase-4 (74LS00).
  5. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS00).
  6. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS00).
  7. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS00).
  8. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS00).
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS00).
  10. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS00).
  11. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS00).
  12. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS00).
  13. Connect Pin-1 (Input) of ICBase-1 (74LS00) to Input-14.
  14. Connect Pin-2 (Input) of ICBase-1 (74LS00) to Input-13.
