Integrated Circuits Used

74LS02

Procedure

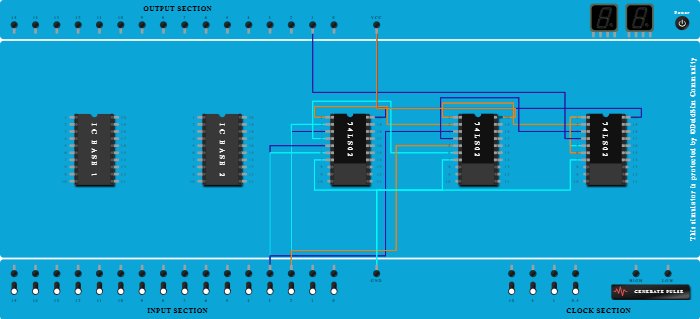

  1. Add IC 74LS02 into ICBase-3 (74LS02).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS02).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS02).
  4. Add IC 74LS02 into ICBase-4 (74LS02).
  5. Connect Pin-3 (Input) of ICBase-3 (74LS02) to Input-2.
  6. Connect Pin-2 (Input) of ICBase-3 (74LS02) to Input-2.
  7. Connect Pin-2 (Input) of ICBase-4 (74LS02) to Pin-1 (Output) of ICBase-3 (74LS02).
  8. Connect Pin-5 (Input) of ICBase-3 (74LS02) to Input-3.
  9. Connect Pin-6 (Input) of ICBase-3 (74LS02) to Input-3.
  10. Connect Pin-3 (Input) of ICBase-4 (74LS02) to Input-3.
  11. Connect Pin-6 (Input) of ICBase-4 (74LS02) to Pin-4 (Output) of ICBase-3 (74LS02).
  12. Connect Pin-5 (Input) of ICBase-4 (74LS02) to Input-2.
  13. Add IC 74LS02 into ICBase-5 (74LS02).
  14. Connect VCC Port to Pin-20 (VCC) of ICBase-5 (74LS02).
  15. Connect GND Port to Pin-7 (Ground) of ICBase-5 (74LS02).
  16. Connect Pin-2 (Input) of ICBase-5 (74LS02) to Pin-1 (Output) of ICBase-4 (74LS02).
  17. Connect Pin-3 (Input) of ICBase-5 (74LS02) to Pin-4 (Output) of ICBase-4 (74LS02).
  18. Connect Pin-5 (Input) of ICBase-5 (74LS02) to Pin-1 (Output) of ICBase-5 (74LS02).
  19. Connect Pin-6 (Input) of ICBase-5 (74LS02) to Pin-1 (Output) of ICBase-5 (74LS02).
  20. Connect Output-1 to Pin-4 (Output) of ICBase-5 (74LS02).
  21. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS02).
  22. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS02).
