Untitled circuit
100%

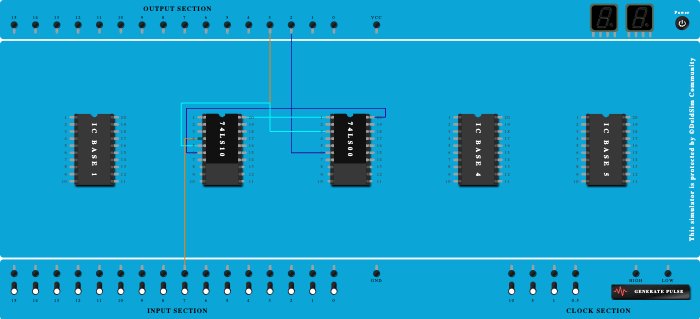

Integrated Circuits Used

74LS00 74LS10

Procedure

  1. Add IC 74LS00 into ICBase-3 (74LS00).
  2. Add IC 74LS10 into ICBase-2 (74LS10).
  3. Connect Pin-6 (Output) of ICBase-3 (74LS00) to Output-2.
  4. Connect Pin-20 (VCC) of ICBase-2 (74LS10) to Pin-1 (Input) of ICBase-3 (74LS00).
  5. Connect Pin-3 (Output) of ICBase-3 (74LS00) to Output-3.
  6. Connect Pin-20 (VCC) of ICBase-3 (74LS00) to Pin-6 (Output) of ICBase-2 (74LS10).
  7. Connect Pin-3 (Output) of ICBase-3 (74LS00) to Pin-5 (Input) of ICBase-2 (74LS10).
  8. Connect Input-7 to Pin-4 (Input) of ICBase-2 (74LS10).
