Untitled circuit
100%

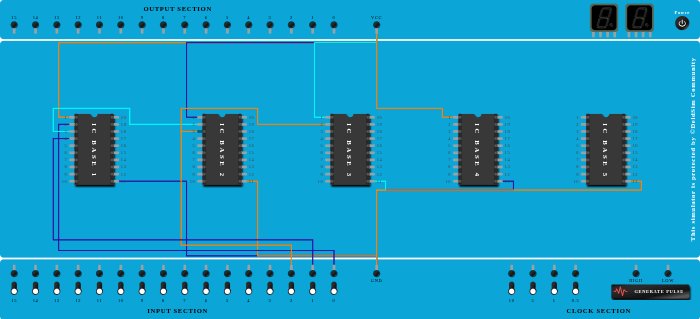

Procedure

  1. Connect Pin-1 (Input & Output) of ICBase-1 to VCC Port.
  2. Connect Pin-11 (Input & Output) of ICBase-1 to GND Port.
  3. Connect GND Port to Pin-11 (Input & Output) of ICBase-2.
  4. Connect GND Port to Pin-11 (Input & Output) of ICBase-4.
  5. Connect Pin-11 (Input & Output) of ICBase-3 to GND Port.
  6. Connect GND Port to Pin-11 (Input & Output) of ICBase-5.
  7. Connect VCC Port to Pin-1 (Input & Output) of ICBase-2.
  8. Connect VCC Port to Pin-1 (Input & Output) of ICBase-3.
  9. Connect VCC Port to Pin-1 (Input & Output) of ICBase-4.
  10. Connect Pin-2 (Input & Output) of ICBase-1 to Input-0.
  11. Connect Pin-2 (Input & Output) of ICBase-2 to Pin-3 (Input & Output) of ICBase-1.
  12. Connect Pin-3 (Input & Output) of ICBase-2 to Input-2.
  13. Connect Pin-4 (Input & Output) of ICBase-1 to Input-1.
  14. Connect Pin-2 (Input & Output) of ICBase-3 to Pin-3 (Input & Output) of ICBase-2.
