Integrated Circuits Used

74LS76

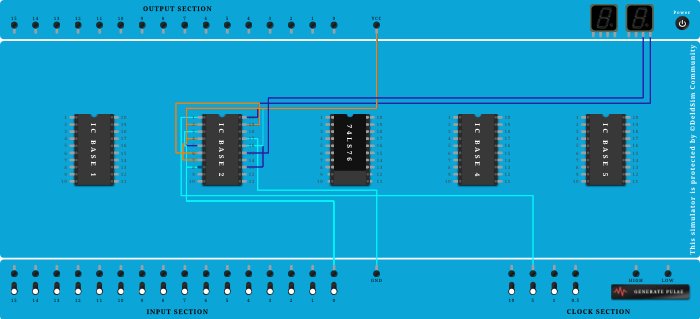

Procedure

  1. Add IC 74LS76 into ICBase-3 (74LS76).
  2. Connect VCC Port to Pin-5 (Input & Output) of ICBase-2.
  3. Connect GND Port to Pin-17 (Input & Output) of ICBase-2.
  4. Connect VCC Port to Pin-4 (Input & Output) of ICBase-2.
  5. Connect VCC Port to Pin-20 (Input & Output) of ICBase-2.
  6. Connect Clock port of 5Hz frequency to Pin-1 (Input & Output) of ICBase-2.
  7. Connect VCC Port to Pin-2 (Input & Output) of ICBase-2.
  8. Connect Seven segment display 1 to Pin-19 (Input & Output) of ICBase-2.
  9. Connect Input-0 to Pin-3 (Input & Output) of ICBase-2.
  10. Connect Pin-19 (Input & Output) of ICBase-2 to Pin-6 (Input & Output) of ICBase-2.
  11. Connect VCC Port to Pin-13 (Input & Output) of ICBase-2.
  12. Connect VCC Port to Pin-16 (Input & Output) of ICBase-2.
  13. Connect VCC Port to Pin-7 (Input & Output) of ICBase-2.
  14. Connect Seven segment display 1 to Pin-15 (Input & Output) of ICBase-2.
  15. Connect Input-0 to Pin-8 (Input & Output) of ICBase-2.
