Untitled circuit
100%

Procedure

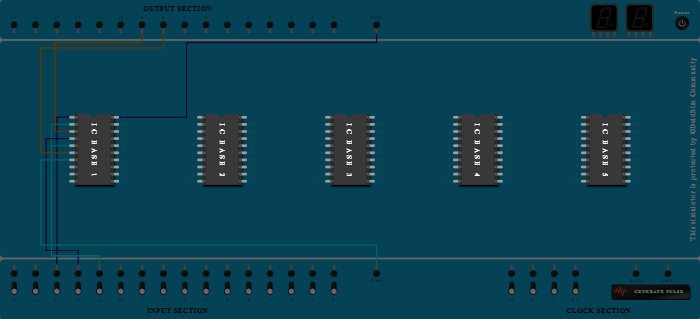

  1. Connect Pin-1 (Input & Output) of ICBase-1 to Input-13.
  2. Connect Pin-2 (Input & Output) of ICBase-1 to Input-11.
  3. Connect Pin-3 (Input & Output) of ICBase-1 to Output-9.
  4. Connect Pin-4 (Input & Output) of ICBase-1 to Input-12.
  5. Connect Pin-5 (Input & Output) of ICBase-1 to Input-11.
  6. Connect Pin-6 (Input & Output) of ICBase-1 to Output-8.
  7. Connect Pin-20 (Input & Output) of ICBase-1 to VCC Port.
  8. Connect Pin-7 (Input & Output) of ICBase-1 to GND Port.
