Untitled circuit
100%

Integrated Circuits Used

74LS153

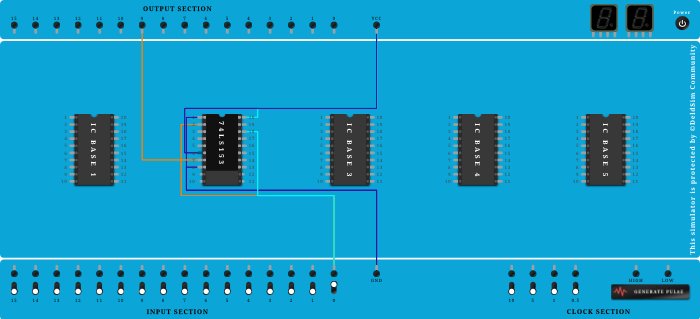

Procedure

  1. Add IC 74LS153 into ICBase-2 (74LS153).
  2. Connect GND Port to Pin-8 (Ground) of ICBase-2 (74LS153).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS153).
  4. Connect Input-0 to Pin-2 (Input) of ICBase-2 (74LS153).
  5. Connect GND Port to Pin-1 (Input) of ICBase-2 (74LS153).
  6. Connect Input-0 to Pin-18 (Input) of ICBase-2 (74LS153).
  7. Connect Output-9 to Pin-7 (Output) of ICBase-2 (74LS153).
  8. Connect VCC Port to Pin-6 (Input) of ICBase-2 (74LS153).
