New Circuit
100%

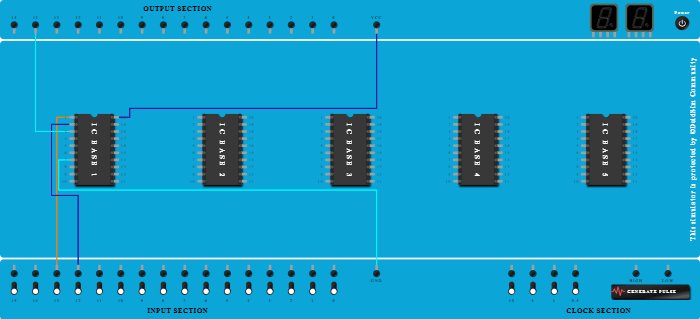

Procedure

  1. Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
  2. Connect GND Port to Pin-7 (Input & Output) of ICBase-1.
  3. Connect Input-13 to Pin-1 (Input & Output) of ICBase-1.
  4. Connect Input-12 to Pin-2 (Input & Output) of ICBase-1.
  5. Connect Output-14 to Pin-3 (Input & Output) of ICBase-1.
