Integrated Circuits Used

74LS10

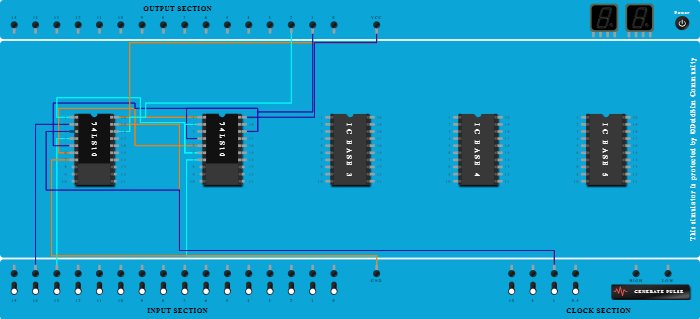

Procedure

  1. Add IC 74LS10 into ICBase-1 (74LS10).
  2. Add IC 74LS10 into ICBase-2 (74LS10).
  3. Connect Pin-2 (Input) of ICBase-1 (74LS10) to Input-14.
  4. Connect Pin-4 (Input) of ICBase-1 (74LS10) to Input-13.
  5. Connect Pin-1 (Input) of ICBase-2 (74LS10) to Pin-18 (Output) of ICBase-1 (74LS10).
  6. Connect Pin-4 (Input) of ICBase-2 (74LS10) to Pin-18 (Output) of ICBase-2 (74LS10).
  7. Connect Pin-6 (Output) of ICBase-2 (74LS10) to Pin-2 (Input) of ICBase-2 (74LS10).
  8. Connect Pin-5 (Input) of ICBase-2 (74LS10) to Pin-6 (Output) of ICBase-1 (74LS10).
  9. Connect Pin-18 (Output) of ICBase-2 (74LS10) to Pin-5 (Input) of ICBase-1 (74LS10).
  10. Connect Pin-6 (Output) of ICBase-2 (74LS10) to Pin-1 (Input) of ICBase-1 (74LS10).
  11. Connect Pin-20 (VCC) of ICBase-1 (74LS10) to VCC Port.
  12. Connect Pin-20 (VCC) of ICBase-2 (74LS10) to VCC Port.
  13. Connect Pin-7 (Ground) of ICBase-2 (74LS10) to GND Port.
  14. Connect Pin-7 (Ground) of ICBase-1 (74LS10) to GND Port.
  15. Connect Output-1 to Pin-18 (Output) of ICBase-2 (74LS10).
  16. Connect Output-2 to Pin-18 (Output) of ICBase-1 (74LS10).
  17. Connect Pin-19 (Input) of ICBase-1 (74LS10) to Clock port of 1Hz frequency.
  18. Connect Clock port of 1Hz frequency to Pin-3 (Input) of ICBase-1 (74LS10).
