Untitled circuit
100%

Integrated Circuits Used

74LS76

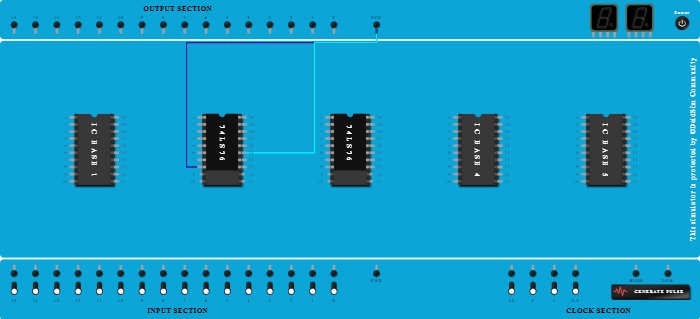

Procedure

  1. Add IC 74LS76 into ICBase-2 (74LS76).
  2. Add IC 74LS76 into ICBase-3 (74LS76).
  3. Connect Pin-8 (Input) of ICBase-2 (74LS76) to VCC Port.
  4. Connect Pin-15 (Output) of ICBase-2 (74LS76) to VCC Port.
