New Circuit

Parikshit Shinde
Parikshit Shinde
• Created on Mar 26, 2026 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Integrated Circuits Used

74LS153

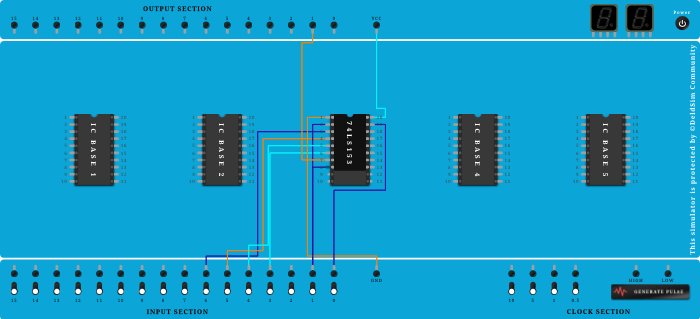

Procedure

  1. Add IC 74LS153 into ICBase-3 (74LS153).
  2. Connect Pin-3 (Input) of ICBase-3 (74LS153) to Input-6.
  3. Connect Pin-6 (Input) of ICBase-3 (74LS153) to Input-3.
  4. Connect Pin-4 (Input) of ICBase-3 (74LS153) to Input-5.
  5. Connect Pin-2 (Input) of ICBase-3 (74LS153) to Input-1.
  6. Connect Pin-5 (Input) of ICBase-3 (74LS153) to Input-4.
  7. Connect Pin-1 (Input) of ICBase-3 (74LS153) to GND Port.
  8. Connect Input-0 to Pin-19 (Input) of ICBase-3 (74LS153).
  9. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS153).
  10. Connect Pin-7 (Output) of ICBase-3 (74LS153) to Output-1.
  11. Connect Input-1 to Pin-8 (Ground) of ICBase-3 (74LS153).
