half adder using mux
100%

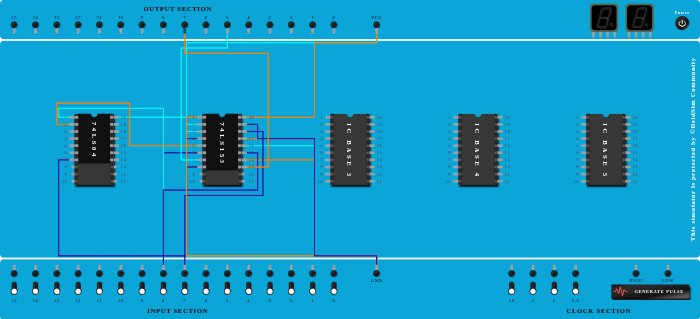

Procedure

  1. Add IC 74LS04 into ICBase-1 (74LS04).
  2. Connect Pin-8 (Ground) of ICBase-2 (74LS153) to GND Port.
  3. Add IC 74LS153 into ICBase-2 (74LS153).
  4. Connect Pin-7 (Ground) of ICBase-1 (74LS04) to GND Port.
  5. Connect Pin-20 (VCC) of ICBase-1 (74LS04) to VCC Port.
  6. Connect Pin-20 (VCC) of ICBase-2 (74LS153) to VCC Port.
  7. Connect Pin-6 (Input) of ICBase-2 (74LS153) to Input-8.
  8. Connect Pin-1 (Input) of ICBase-1 (74LS04) to Input-8.
  9. Connect Pin-5 (Input) of ICBase-2 (74LS153) to Pin-2 (Output) of ICBase-1 (74LS04).
  10. Connect Pin-4 (Input) of ICBase-2 (74LS153) to GND Port.
  11. Connect Pin-3 (Input) of ICBase-2 (74LS153) to GND Port.
  12. Connect Pin-14 (Input) of ICBase-2 (74LS153) to GND Port.
  13. Connect Input-8 to Pin-15 (Input) of ICBase-2 (74LS153).
  14. Connect Pin-16 (Input) of ICBase-2 (74LS153) to GND Port.
  15. Connect Pin-17 (Input) of ICBase-2 (74LS153) to GND Port.
  16. Connect Input-7 to Pin-18 (Input) of ICBase-2 (74LS153).
  17. Connect GND Port to Pin-2 (Input) of ICBase-2 (74LS153).
  18. Connect GND Port to Pin-1 (Input) of ICBase-2 (74LS153).
  19. Connect GND Port to Pin-19 (Input) of ICBase-2 (74LS153).
  20. Connect Pin-7 (Output) of ICBase-2 (74LS153) to Output-5.
  21. Connect Pin-13 (Output) of ICBase-2 (74LS153) to Output-7.
