New Circuit
100%

Integrated Circuits Used

74LS76

Procedure

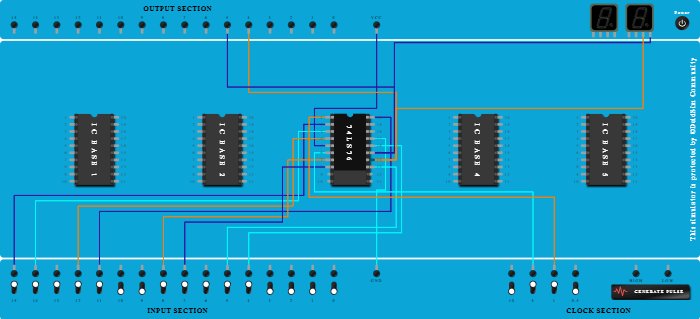

  1. Add IC 74LS76 into ICBase-3 (74LS76).
  2. Connect VCC Port to Pin-5 (VCC) of ICBase-3 (74LS76).
  3. Connect GND Port to Pin-17 (Ground) of ICBase-3 (74LS76).
  4. Connect Input-15 to Pin-2 (Input) of ICBase-3 (74LS76).
  5. Connect Input-14 to Pin-3 (Input) of ICBase-3 (74LS76).
  6. Connect Input-12 to Pin-4 (Input) of ICBase-3 (74LS76).
  7. Connect Input-11 to Pin-20 (Input) of ICBase-3 (74LS76).
  8. Connect Clock port of 1Hz frequency to Pin-1 (Input) of ICBase-3 (74LS76).
  9. Connect Input-8 to Pin-7 (Input) of ICBase-3 (74LS76).
  10. Connect Input-7 to Pin-8 (Input) of ICBase-3 (74LS76).
  11. Connect Input-5 to Pin-13 (Input) of ICBase-3 (74LS76).
  12. Connect Output-4 to Pin-14 (Output) of ICBase-3 (74LS76).
  13. Connect Output-5 to Pin-15 (Output) of ICBase-3 (74LS76).
  14. Connect Input-4 to Pin-16 (Input) of ICBase-3 (74LS76).
  15. Connect Clock port of 5Hz frequency to Pin-6 (Input) of ICBase-3 (74LS76).
  16. Connect Pin-15 (Output) of ICBase-3 (74LS76) to Seven segment display 1.
  17. Connect Seven segment display 1 to Pin-14 (Output) of ICBase-3 (74LS76).
