New Circuit

Vedant
Vedant Shinde
• Created on Apr 9, 2026 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
New Circuit
100%

Integrated Circuits Used

74LS76

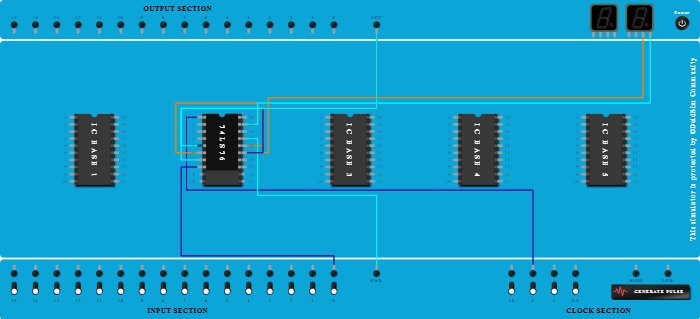

Procedure

  1. Add IC 74LS76 into ICBase-2 (74LS76).
  2. Connect Clock port of 5Hz frequency to Pin-1 (Input) of ICBase-2 (74LS76).
  3. Connect VCC Port to Pin-7 (Input) of ICBase-2 (74LS76).
  4. Connect Pin-6 (Input) of ICBase-2 (74LS76) to Pin-19 (Output) of ICBase-2 (74LS76).
  5. Connect Pin-8 (Input) of ICBase-2 (74LS76) to Input-0.
  6. Connect GND Port to Pin-17 (Ground) of ICBase-2 (74LS76).
  7. Connect VCC Port to Pin-16 (Input) of ICBase-2 (74LS76).
  8. Connect Seven segment display 1 to Pin-19 (Output) of ICBase-2 (74LS76).
  9. Connect Seven segment display 1 to Pin-15 (Output) of ICBase-2 (74LS76).
  10. Connect VCC Port to Pin-15 (Output) of ICBase-2 (74LS76).
  11. Connect VCC Port to Pin-5 (VCC) of ICBase-2 (74LS76).
