Untitled circuit

bharti mahto
bharti mahto
• Created on Mar 26, 2026 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself
Untitled circuit
100%

Integrated Circuits Used

74LS86

Procedure

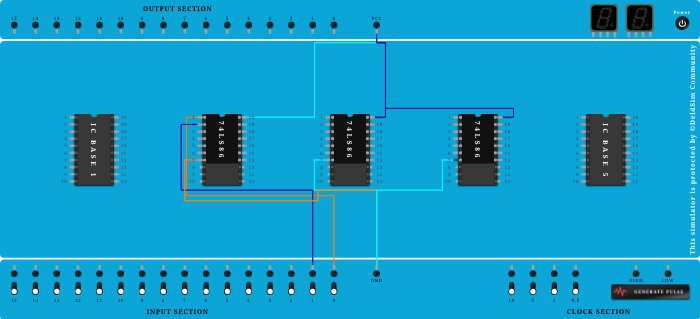

  1. Add IC 74LS86 into ICBase-2 (74LS86).
  2. Add IC 74LS86 into ICBase-3 (74LS86).
  3. Add IC 74LS86 into ICBase-4 (74LS86).
  4. Connect Pin-20 (VCC) of ICBase-3 (74LS86) to VCC Port.
  5. Connect GND Port to Pin-7 (Ground) of ICBase-3 (74LS86).
  6. Connect Input-0 to Pin-1 (Input) of ICBase-2 (74LS86).
  7. Connect Input-1 to Pin-2 (Input) of ICBase-2 (74LS86).
  8. Connect Pin-20 (VCC) of ICBase-2 (74LS86) to VCC Port.
  9. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS86).
  10. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS86).
  11. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS86).
