New Circuit
100%

Integrated Circuits Used

74LS76

Procedure

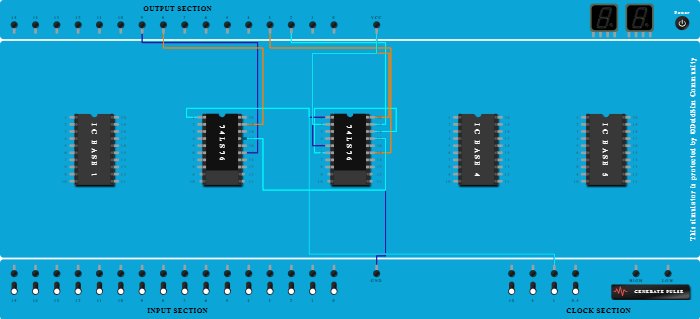

  1. Add IC 74LS76 into ICBase-2 (74LS76).
  2. Add IC 74LS76 into ICBase-3 (74LS76).
  3. Connect Pin-15 (Output) of ICBase-2 (74LS76) to Output-9.
  4. Connect Pin-19 (Output) of ICBase-3 (74LS76) to Output-2.
  5. Connect Pin-15 (Output) of ICBase-3 (74LS76) to Output-3.
  6. Connect Pin-17 (Ground) of ICBase-3 (74LS76) to GND Port.
  7. Connect Pin-18 (Output) of ICBase-3 (74LS76) to Pin-6 (Input) of ICBase-3 (74LS76).
  8. Connect Pin-19 (Output) of ICBase-2 (74LS76) to Output-8.
  9. Connect Pin-1 (Input) of ICBase-3 (74LS76) to Clock port of 1Hz frequency.
  10. Connect Pin-1 (Input) of ICBase-2 (74LS76) to Clock port of 1Hz frequency.
  11. Connect Pin-20 (Input) of ICBase-3 (74LS76) to VCC Port.
  12. Connect Pin-5 (VCC) of ICBase-3 (74LS76) to VCC Port.
  13. Connect Pin-2 (Input) of ICBase-3 (74LS76) to VCC Port.
  14. Connect Pin-17 (Ground) of ICBase-3 (74LS76) to Pin-17 (Ground) of ICBase-2 (74LS76).
