Integrated Circuits Used

74LS76

Procedure

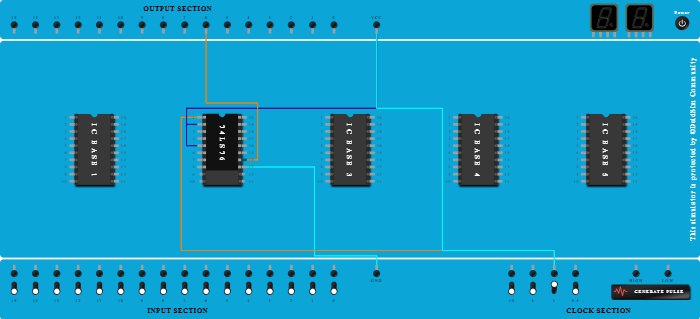

  1. Add IC 74LS76 into ICBase-2 (74LS76).
  2. Connect VCC Port to Pin-5 (VCC) of ICBase-2 (74LS76).
  3. Connect Pin-13 (Input) of ICBase-2 (74LS76) to GND Port.
  4. Connect Pin-1 (Input) of ICBase-2 (74LS76) to Clock port of 1Hz frequency.
  5. Connect Pin-2 (Input) of ICBase-2 (74LS76) to VCC Port.
  6. Connect VCC Port to Clock port of 1Hz frequency.
  7. Connect Output-6 to Pin-14 (Output) of ICBase-2 (74LS76).
