Integrated Circuits Used

74LS76

Procedure

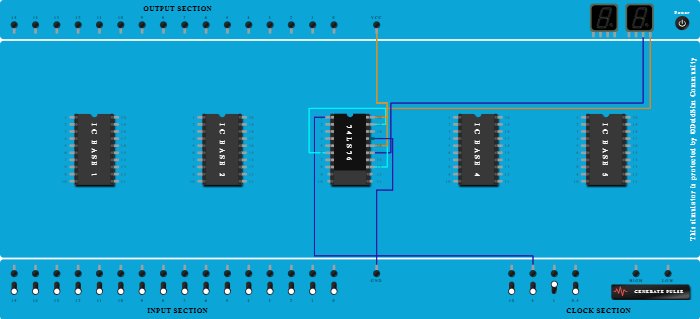

  1. Add IC 74LS76 into ICBase-3 (74LS76).
  2. Connect Seven segment display 1 to Pin-19 (Output) of ICBase-3 (74LS76).
  3. Connect Pin-1 (Input) of ICBase-3 (74LS76) to Clock port of 5Hz frequency.
  4. Connect Pin-19 (Output) of ICBase-3 (74LS76) to Pin-6 (Input) of ICBase-3 (74LS76).
  5. Connect VCC Port to Pin-20 (Input) of ICBase-3 (74LS76).
  6. Connect Seven segment display 1 to Pin-15 (Output) of ICBase-3 (74LS76).
  7. Connect VCC Port to Pin-13 (Input) of ICBase-3 (74LS76).
  8. Connect VCC Port to Pin-16 (Input) of ICBase-3 (74LS76).
  9. Connect GND Port to Pin-17 (Ground) of ICBase-3 (74LS76).
