Integrated Circuits Used

74LS153

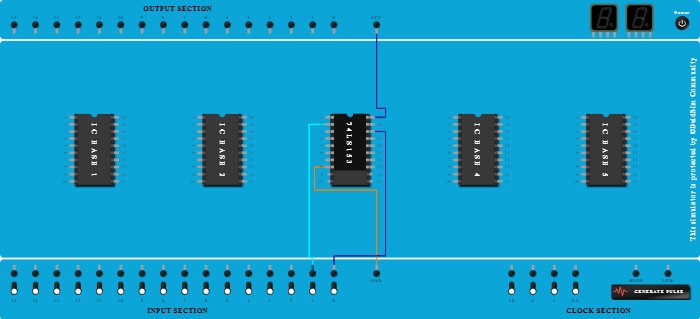

Procedure

  1. Add IC 74LS153 into ICBase-3 (74LS153).
  2. Connect GND Port to Pin-8 (Ground) of ICBase-3 (74LS153).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-3 (74LS153).
  4. Connect Pin-18 (Input) of ICBase-3 (74LS153) to Input-0.
  5. Connect Pin-2 (Input) of ICBase-3 (74LS153) to Input-1.
