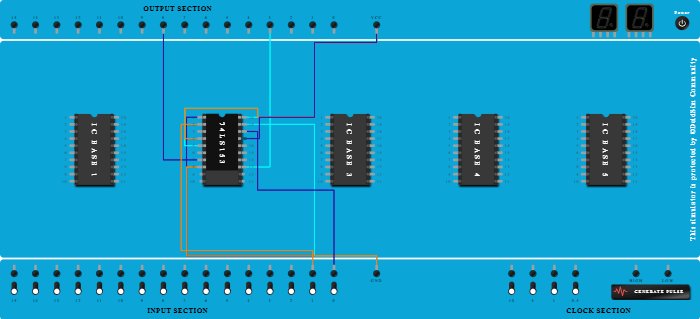

Integrated Circuits Used

74LS153

Procedure

  1. Add IC 74LS153 into ICBase-2 (74LS153).
  2. Connect Pin-1 (Input) of ICBase-2 (74LS153) to GND Port.
  3. Connect Pin-19 (Input) of ICBase-2 (74LS153) to GND Port.
  4. Connect Pin-8 (Ground) of ICBase-2 (74LS153) to GND Port.
  5. Connect Pin-20 (VCC) of ICBase-2 (74LS153) to VCC Port.
  6. Connect Output-8 to Pin-7 (Output) of ICBase-2 (74LS153).
  7. Connect Output-3 to Pin-13 (Output) of ICBase-2 (74LS153).
  8. Connect Pin-2 (Input) of ICBase-2 (74LS153) to Input-1.
  9. Connect Input-0 to Pin-18 (Input) of ICBase-2 (74LS153).
  10. Connect VCC Port to Pin-5 (Input) of ICBase-2 (74LS153).
  11. Connect VCC Port to Pin-4 (Input) of ICBase-2 (74LS153).
  12. Connect VCC Port to Pin-17 (Input) of ICBase-2 (74LS153).
