Untitled circuit - Copy
100%

Integrated Circuits Used

74LS02

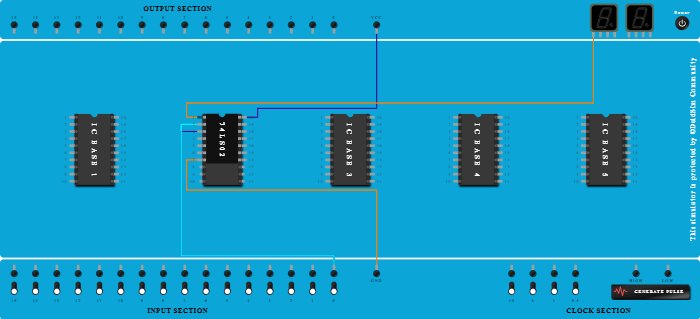

Procedure

  1. Add IC 74LS02 into ICBase-2 (74LS02).
  2. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS02).
  3. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS02).
  4. Connect Pin-3 (Input) of ICBase-2 (74LS02) to Input-0.
  5. Connect Pin-2 (Input) of ICBase-2 (74LS02) to Input-0.
  6. Connect Seven segment display 2 to Pin-1 (Output) of ICBase-2 (74LS02).
