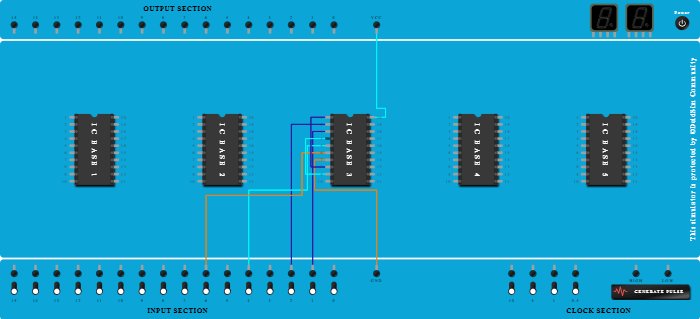

Procedure

  1. Connect Input-2 to Pin-2 (Input & Output) of ICBase-3.
  2. Connect VCC Port to Pin-20 (Input & Output) of ICBase-3.
  3. Connect GND Port to Pin-7 (Input & Output) of ICBase-3.
  4. Connect Input-1 to Pin-3 (Input & Output) of ICBase-3.
  5. Connect Input-4 to Pin-5 (Input & Output) of ICBase-3.
  6. Connect Input-6 to Pin-6 (Input & Output) of ICBase-3.
  7. Connect Pin-8 (Input & Output) of ICBase-3 to Pin-1 (Input & Output) of ICBase-3.
  8. Connect Pin-9 (Input & Output) of ICBase-3 to Pin-4 (Input & Output) of ICBase-3.
