New Circuit
100%

Integrated Circuits Used

74LS00

Procedure

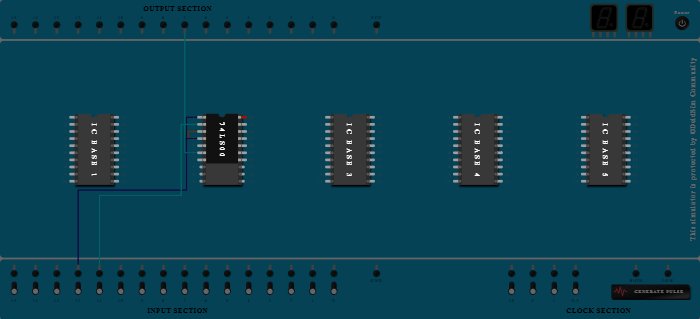

  1. Add IC 74LS00 into ICBase-2 (74LS00).
  2. Connect Input-12 to Pin-1 (Input) of ICBase-2 (74LS00).
  3. Connect Input-11 to Pin-2 (Input) of ICBase-2 (74LS00).
  4. Connect Pin-4 (Input) of ICBase-2 (74LS00) to Pin-3 (Output) of ICBase-2 (74LS00).
  5. Connect Pin-6 (Output) of ICBase-2 (74LS00) to Pin-4 (Input) of ICBase-2 (74LS00).
  6. Connect Output-7 to Pin-6 (Output) of ICBase-2 (74LS00).
