Procedure

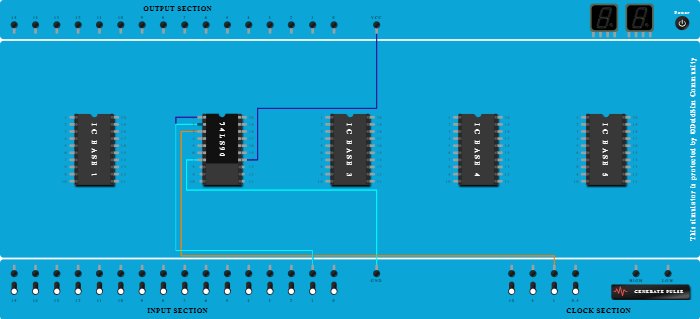

  1. Add IC 74LS90 into ICBase-2 (74LS90).
  2. Connect VCC Port to Pin-14 (Output) of ICBase-2 (74LS90).
  3. Connect GND Port to Pin-7 (Input) of ICBase-2 (74LS90).
  4. Connect Pin-3 (Input) of ICBase-2 (74LS90) to Clock port of 1Hz frequency.
  5. Connect Pin-1 (Input) of ICBase-2 (74LS90) to Input-1.
  6. Connect Input-1 to Pin-2 (Input) of ICBase-2 (74LS90).
