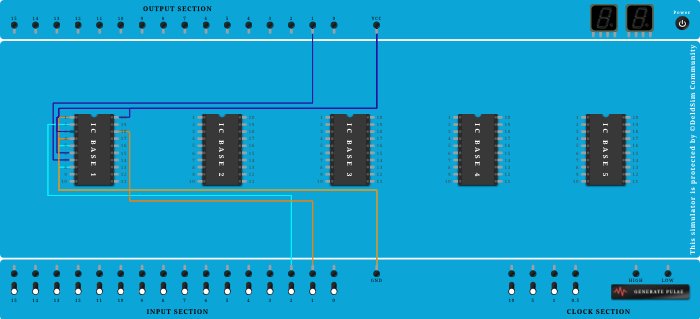

Procedure

  1. Connect VCC Port to Pin-20 (Input & Output) of ICBase-1.
  2. Connect GND Port to Pin-8 (Input & Output) of ICBase-1.
  3. Connect GND Port to Pin-1 (Input & Output) of ICBase-1.
  4. Connect Output-1 to Pin-7 (Input & Output) of ICBase-1.
  5. Connect Input-2 to Pin-2 (Input & Output) of ICBase-1.
  6. Connect Input-1 to Pin-18 (Input & Output) of ICBase-1.
  7. Connect VCC Port to Pin-6 (Input & Output) of ICBase-1.
  8. Connect GND Port to Pin-5 (Input & Output) of ICBase-1.
  9. Connect GND Port to Pin-4 (Input & Output) of ICBase-1.
  10. Connect VCC Port to Pin-3 (Input & Output) of ICBase-1.
