Binary To Gray Code

Rehan
Rehan
• Created on Mar 4, 2026 • 0 • 0 • 1
Edit Circuit Copy Circuit Try Yourself

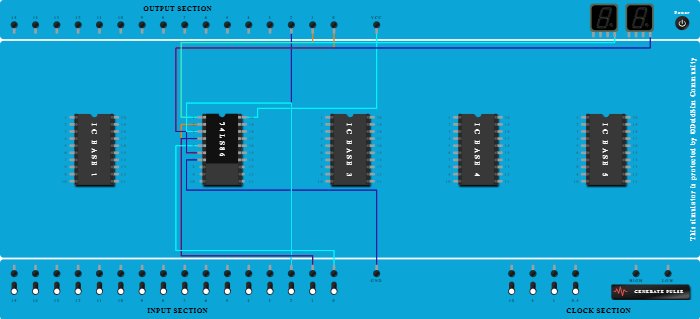

Binary To Gray Code
100%

Integrated Circuits Used

74LS86

Procedure

  1. Add IC 74LS86 into ICBase-2 (74LS86).
  2. Connect GND Port to Pin-7 (Ground) of ICBase-2 (74LS86).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-2 (74LS86).
  4. Connect Pin-2 (Input) of ICBase-2 (74LS86) to Input-1.
  5. Connect Output-2 to Input-2.
  6. Connect Pin-1 (Input) of ICBase-2 (74LS86) to Input-2.
  7. Connect Pin-3 (Output) of ICBase-2 (74LS86) to Output-1.
  8. Connect Pin-4 (Input) of ICBase-2 (74LS86) to Input-1.
  9. Connect Pin-5 (Input) of ICBase-2 (74LS86) to Input-0.
  10. Connect Pin-6 (Output) of ICBase-2 (74LS86) to Output-0.
  11. Connect Pin-6 (Output) of ICBase-2 (74LS86) to Seven segment display 1.
  12. Connect Pin-3 (Output) of ICBase-2 (74LS86) to Seven segment display 2.
