New Circuit - Gray-Binary

Shatakshi Shiravale
Shatakshi Shiravale
• Created on Mar 2, 2026 • 0 • 0 • 0
Edit Circuit Copy Circuit Try Yourself

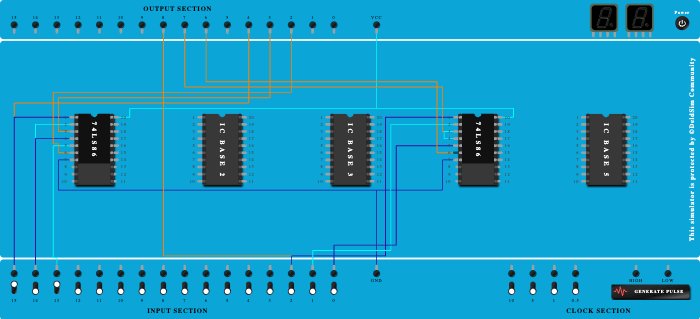

New Circuit - Gray-Binary
100%

Procedure

  1. Add IC 74LS86 into ICBase-1 (74LS86).
  2. Connect GND Port to Pin-7 (Ground) of ICBase-1 (74LS86).
  3. Connect VCC Port to Pin-20 (VCC) of ICBase-1 (74LS86).
  4. Connect Output-4 to Input-15.
  5. Connect Pin-1 (Input) of ICBase-1 (74LS86) to Input-15.
  6. Connect Pin-2 (Input) of ICBase-1 (74LS86) to Input-14.
  7. Connect Output-3 to Pin-3 (Output) of ICBase-1 (74LS86).
  8. Connect Pin-4 (Input) of ICBase-1 (74LS86) to Input-14.
  9. Connect Pin-5 (Input) of ICBase-1 (74LS86) to Input-13.
  10. Connect Output-2 to Pin-6 (Output) of ICBase-1 (74LS86).
  11. Add IC 74LS86 into ICBase-4 (74LS86).
  12. Connect GND Port to Pin-7 (Ground) of ICBase-4 (74LS86).
  13. Connect VCC Port to Pin-20 (VCC) of ICBase-4 (74LS86).
  14. Connect Output-8 to Input-2.
  15. Connect Pin-1 (Input) of ICBase-4 (74LS86) to Input-2.
  16. Connect Pin-2 (Input) of ICBase-4 (74LS86) to Input-1.
  17. Connect Output-7 to Pin-3 (Output) of ICBase-4 (74LS86).
  18. Connect Pin-5 (Input) of ICBase-4 (74LS86) to Input-0.
  19. Connect Pin-4 (Input) of ICBase-4 (74LS86) to Pin-3 (Output) of ICBase-4 (74LS86).
  20. Connect Output-6 to Pin-6 (Output) of ICBase-4 (74LS86).
