Assignments 5 gray to Binary
100%

Integrated Circuits Used

74LS86

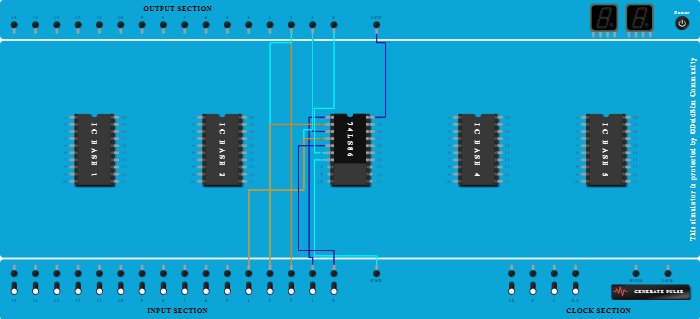

Procedure

  1. Add IC 74LS86 into ICBase-3 (74LS86).
  2. Connect Pin-20 (VCC) of ICBase-3 (74LS86) to VCC Port.
  3. Connect Pin-7 (Ground) of ICBase-3 (74LS86) to GND Port.
  4. Connect Output-2 to Input-2.
  5. Connect Pin-1 (Input) of ICBase-3 (74LS86) to Input-1.
  6. Connect Input-3 to Output-2.
  7. Connect Pin-2 (Input) of ICBase-3 (74LS86) to Input-3.
  8. Connect Output-1 to Pin-3 (Output) of ICBase-3 (74LS86).
  9. Connect Input-4 to Output-1.
  10. Connect Pin-4 (Input) of ICBase-3 (74LS86) to Input-4.
  11. Connect Pin-5 (Input) of ICBase-3 (74LS86) to Input-0.
  12. Connect Output-0 to Pin-6 (Output) of ICBase-3 (74LS86).
